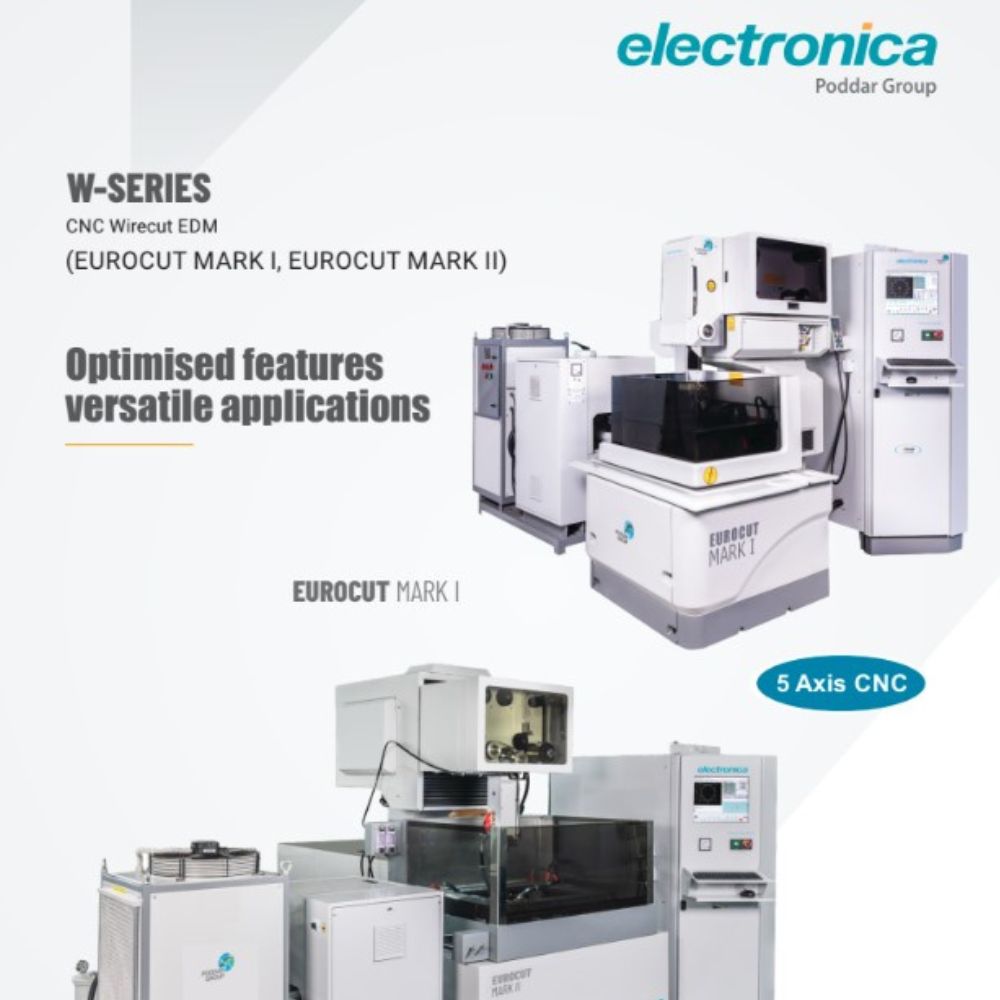

Wire EDM
Wire-cut EDM (Electrical Discharge Machining) Machines are precision tools used in manufacturing to cut and shape complex parts and materials accurately. These machines can create intricate designs and geometries in hard materials using a thin, electrically charged wire that is difficult to machine with traditional methods.
Product Features:
Achieves extremely tight tolerances and fine finishes.
Capable of producing intricate shapes and delicate parts.
Equipped with CNC (Computer Numerical Control) for automated and programmable operations.
Works with diverse materials, including hardened steels, exotic alloys, and carbides.
The non-contact process ensures minimal thermal impact on the workpiece.
Utilizes wires as fine as 0.02mm in diameter for detailed work.
Intuitive control panels and software for ease of programming and operation.
Applications:
Wire-cut EDM machines are essential in industries where precision, complexity, and high-quality finishes are crucial. Their ability to machine hard materials with minimal thermal effects makes them invaluable for advanced manufacturing processes.
Manufacturing precision dies molds, and tooling components.
Crafting intricate components for medical instruments and implants.
Fabricating high-precision parts for aircraft and spacecraft.
Producing complex components and prototypes for vehicles.
Cutting precise parts for electronic devices and circuits.
Creating intricate and delicate jewelry pieces.
Manufacturing precision parts for weapons and defense systems.
Industries:
Manufacturing
Medical Technology
Aerospace
Medical Devices
Electronics
Jewelry
Automotive
Specifications:
Wire Diameter Range: 0.02mm to 0.33mm
Maximum Workpiece Dimensions: Varies by model, typically up to 500 x 350 x 300 mm
Cutting Speed: Up to 300 mm²/min depending on material and thickness
Positional Accuracy: ± 1.5 µm
Surface Finish: Up to Ra 0.1 µm
Technical Data Sheet:
