EDM Machine

The EDM (Electrical Discharge Machining) Machine by Petrotek UAE is designed to enhance manufacturing processes with precision and efficiency. Leveraging cutting-edge technology, the EDM Machine ensures unmatched accuracy, reducing human error and maximizing productivity.

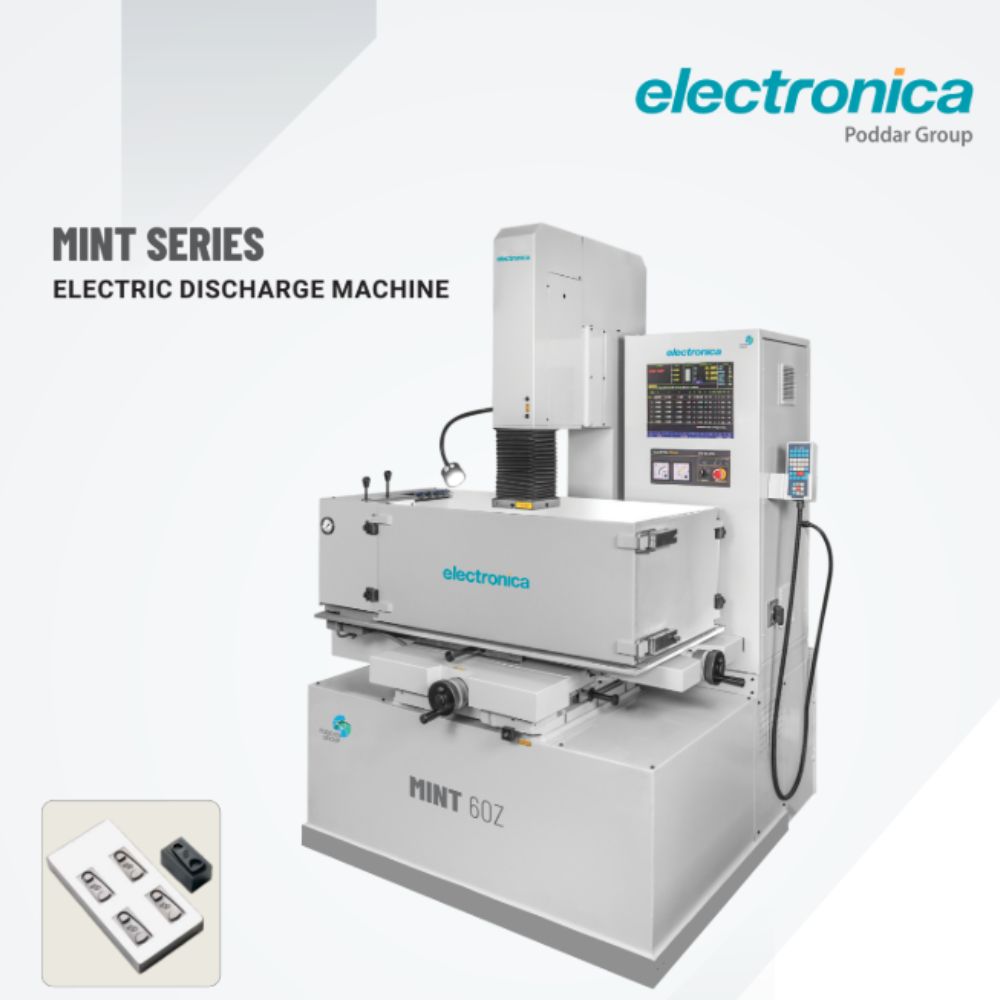

The Electronica Wire EDM MINT SERIES – M & ZNC is at the forefront of EDM technology. This advanced machine series excels at cutting complex shapes with high precision, making it perfect for industries that require detailed and precise components.


Product Features:

  • Very Low Power Consumption

  • Like-to-Like Machining

  • MOSFET for superior finish

  • Carbide Cutting

  • Optimum Performance

  • Ball screw for x,y axes.

  • Impulse flushing.

  • Ergonomically designed control panel

  • Day / Night mode for 24 hours operation

  • Auto  positioning  with audiovisual  signal

  • Reverse servo sparking

  • Multistage anti-arc in -built

  • Reverse polarity for every operation

  • DC servo with speed-up function

  • AC servo with speed -up for ZNC  – 2mtr / min


Applications:

Our EDM Machine handles delicate and robust components with ease- suitable for a wide range of industries, including medical, aerospace, automotive, and electronics,

  • Plastic Moulds

  • Forging Dies

  • Coining Dies

  • Die-Casting Dies

  • Carbide Dies

  • Engraving Dies


Industries:

  1. Manufacturing

  2. Automotive

  3. Aerospace

  4. Medical Devices

  5. Electronics


Specifications:

  • Precision Tolerance: ±0.001 mm

  • Workpiece Size: Up to 1000 x 800 x 600 mm

  • Cutting Speed: Variable, depending on material and complexity

  • Power Supply: 220V/380V, 50/60 Hz

  • Control System: Advanced CNC control with a user-friendly interface


Technical Data Sheet:


Machine Tool

Mint – 5030

Mint – 5535

Mint – 6040

Work Tank size

725 x 415 x315 mm

800 x 500 x 350 mm

1000 x 600 x 350 mm

Work table size

500 x 300 mm

555 x 350

600 x 400 mm

T slot for fixing

3 of 10 mm

3 of 10 mm

350 x 250 x 250 mm

Longitudinal travel (x)

280 mm

300 mm

300 kg

Transverse travel (y)

200 mm

200 mm

100 kg

Quill travel (z)

250 mm

250 mm

250 mm

Max, permitted load on the table

250 kg

250 kg

250 kg

Servo system (z axis)

DC servo / AC servo for ZNC

DC servo / AC servo for ZNC

DC servo / AC servo for ZNC

Filter element

10 µ paper filter

10 µ paper filter

10 µ paper cartridge 2 nos

Pulse Generator

Mosfet

Max, working current

35 + 2 Amp

35 + 2 Amp

50 A

Max , MRR (Copper to Steel) (Graphite to steel)

240 mm3 / min

300 mm3 /min

240 mm3 / min

300 mm3 /min

350 mm3 / min

500 mm3 /min

Min, electrode wear

2%

0.20%

<0.2%

Surface finish

0.8 µ Ra / 0.3u Ra for ZNC

0.8 µ Ra / 0.3u Ra for ZNC

0.8 µ Ra / 0.3u Ra for ZNC

Connected Load

4 kva

4 kva

6 kva

Power Supply

3 phase, 415 V* AC, 50 Hz

3 phase, 415 V* AC, 50 Hz

3 phase, 415 V* AC, 50 Hz

Dielectric Unit

Dielectric capacity

340 Liters

400 Liters

600 Liters

Filter element

10 µ paper filter

10 µ paper filter

10 µ paper filter

*Alternate voltage ratings available upon request.
