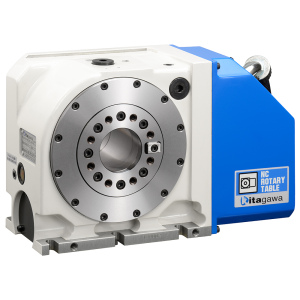

NC Rotary Tables
Kitagawa NC Rotary Tables are high-precision CNC workholding solutions designed to enhance machining flexibility, accuracy and productivity. They add rotary movement to CNC machines, enabling multi-axis machining and accurate positioning of workpieces.
Whether your CNC machine uses Fanuc, Siemens, Mitsubishi or other control systems, Kitagawa offers a wide range of NC rotary tables to suit different machine configurations and machining requirements.
What Are NC Rotary Tables Used For?
NC rotary tables are used to add a rotary axis to CNC machining centres, allowing workpieces to be positioned and machined from multiple angles. They are commonly used as a 4th axis or 5th axis for complex and multi-sided machining operations.
Driven by a servo motor, the rotary table provides accurate numerical positioning through the machine control or an external controller. Pneumatic or hydraulic braking systems can also provide strong and rigid holding during machining.
Kitagawa rotary tables are designed for high accuracy, rigidity, strong clamping force, low maintenance and versatile CNC machining applications.
Benefits of NC Rotary Tables for CNC Machining
NC rotary tables improve CNC machining efficiency by reducing manual workpiece repositioning and setup time. They enable multi-axis machining, allowing multiple sides of a component to be machined in a single setup while improving positioning accuracy and production efficiency.
Key Benefits:
High-precision rotary positioning
Faster and more efficient machining
4-axis and 5-axis machining capability
Reduced setup and repositioning time
Improved machining accuracy
Rigid workpiece holding during machining
Suitable for a wide range of CNC machines
Our NC Rotary Table Range
4th Axis
4th Axis rotary tables provide controlled rotary movement for CNC machining centres, enabling efficient machining of multiple sides of a component in a single setup.
5th Axis
5th Axis rotary tables provide additional rotary and tilting movement for complex machining operations, making them suitable for advanced multi-axis CNC applications.
Accessories
Kitagawa offers a range of rotary table accessories designed to support installation, operation and efficient CNC machining applications.
Kitagawa Controllers
Kitagawa controllers provide the control interface required for accurate operation and positioning of compatible NC rotary tables.
Production Systems
Kitagawa production systems are designed to support automated and high-productivity machining operations, helping improve cycle efficiency and production consistency.
