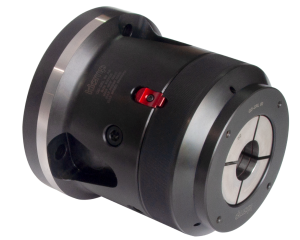

Kitagawa Collet Chucks
Kitagawa Collet Chucks are precision workholding solutions designed for accurate, secure and repeatable clamping of workpieces on CNC turning machines. They provide reliable gripping performance, high-speed operation and quick workpiece changes, making them suitable for precision machining and high-volume production.
Our range of Kitagawa Collet Chucks includes:
QC & C Series – Quick-change and precision collet chucks for efficient CNC workholding.
D Series – Reliable collet chuck solutions designed for accurate and secure workpiece clamping.
Low Profile – Compact collet chucks designed for applications where space and accessibility are important.
Expanding Mandrels – Internal workholding solutions for secure and precise clamping of components from the inside.
QC & C Series Collet Chucks
The QC & C Series from Kitagawa offers a range of quick-change and precision collet chucks for CNC turning applications. These models are available in different gripping capacities and are compatible with various Kitagawa collet systems, allowing users to select the right chuck according to their workpiece size, machine configuration and machining requirements.
QD-CRL42A5 Collet Chuck
The QD-CRL42A5 is a precision collet chuck designed for reliable workholding and high-speed CNC machining. It supports multiple collet options and provides a gripping capacity of up to 42 mm.
Specifications:
Uses: 173E, D673 & Rubberflex Collets
Capacity: 4–42 mm
Maximum Speed: 7,100 rpm
Q-CRL 60 A6 Quick Change Collet Chuck
The Q-CRL 60 A6 is a quick-change collet chuck designed for efficient workpiece clamping and fast setup in CNC turning operations. It offers a wider 4–60 mm capacity for machining different workpiece sizes.
Specifications:
Uses: D677, D185 Collets
Capacity: 4–60 mm
Maximum Speed: 6,300 rpm
Q-CRL 60 A8 Quick Change Collet Chuck
The Q-CRL 60 A8 is a quick-change collet chuck designed for accurate and repeatable CNC workholding. Its 4–60 mm capacity makes it suitable for a broad range of turning applications.
Specifications:
Uses: D677, D185 Collets
Capacity: 4–60 mm
Maximum Speed: 6,300 rpm
QD-CRL60A6 Collet Chuck
The QD-CRL60A6 provides precision workholding with compatibility for multiple collet types. It is suitable for high-speed CNC turning where secure and consistent gripping is required.
Specifications:
Uses: 185E, D677 & Rubberflex Collets
Capacity: 4–60 mm
Maximum Speed: 6,300 rpm
Q-CRL80A8 Collet Chuck
The Q-CRL80A8 is designed for CNC turning applications requiring a larger workholding capacity. It supports workpieces up to 80 mm while maintaining reliable and precise clamping.
Specifications:
Uses: 193E & D660 Collets
Capacity: 12–80 mm
Maximum Speed: 4,500 rpm
