Filter Elements


Filter elements are essential components in filtration systems designed to remove contaminants from air and gases. They utilize advanced media technologies to achieve high efficiency in trapping particles, water, oil aerosols, and odors. Donaldson's filter elements, for instance, feature innovative technologies like UltraPleat® media and sintered materials, ensuring superior particle retention and minimal differential pressure.


Product Features:

  • Filter elements utilize state-of-the-art technologies including UltraPleat®, V-series microfibre fleece, and sintered media to ensure optimal filtration performance.

  • Achieve exceptional particle retention with rates up to 99.9999% for particles as small as 0.01 microns.

  • Effective for removing water, oil aerosols, solid particles, and odors from compressed air and gases.

  • Designed to withstand extreme conditions, including high pressures and mechanical stress, while maintaining efficiency.


Applications:

  • For purifying compressed air used in various industrial processes.

  • Suitable for cleaning gases to meet stringent quality requirements.

  • Filters designed to perform under high and low temperature conditions, and mechanical stresses.

  • Specialized filters for the absorption of oil vapors, hydrocarbons, and odors.


Industries:

  1. Manufacturing

  2. Oil & Gas

  3. Automotive

  4. Pharmaceuticals

  5. Food & Beverage


Specifications:

1. UltraPleat® S & M Coalescence Filters:

Particle Retention Rate: 99.9999% on 0.01-micron particles

Series: S0035, S0070, S0120, etc.; M0035, M0070, M0120, etc.


2. Ultrair V Coalescence Filter:**

Particle Retention Rate: 99.9% on 5-micron particles

Series: V0035, V0070, V0120, etc.


3. Ultraporex B Particle Filter:

Particle Retention Rate: 25 microns absolute

Series: B0035, B0070, B0120, etc.


4. Ultrapoly P Particle Filter:

Particle Retention Rate: 25 microns absolute

Series: P0035, P0070, P0120, etc.


5. Ultrac A Activated Carbon Filter:

Particle Retention Rate: 1 micron absolute

Series: A0035, A0070, A0120, etc.


6. DF-C Cyclone Separators:

Series: DF-C 0050, DF-C 0120, DF-C 0210, etc.

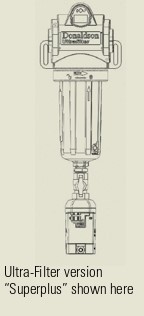

7. SG Standard / Superplus Housings:

 Series: SG 0108, SG 0144, SG 0192, etc.; SG 0108 SP, SG 0144 SP, etc.


8. DFX High Pressure Filters:

Flow Rate: Up to 600 Nm³/h

Operating Pressure: 25 bar

Series: DFX 0035, DFX 0070, DFX 0120, etc.


9. HD-Pressure Filters:

Flow Capacity: 30 to 720 m³/h nominal at 7 bar g

Series: HD 0003, HD 0006, HD 0012, etc.


Donaldson’s filter elements are engineered for superior performance, longevity, and efficiency, making them ideal for a wide range of industrial and high-pressure applications.


Technical Data Sheet:


B-filter Particle filter

A-filter Activated carbon filter

V-filter Coalescence filter

UltraPleat M-filter Coalescence filter

UltraPleat S-filter Coalescence filter

Differential pressure: 0,12 bar A Efficiency: 100 % related to 25 ?m

Differential pressure: 0,13 bar A Residual oil content: 0,003 mg/m3 C

Differential pressure: 0,11 bar A Residual oil content: < 0,2 mg/m3 D

Differential pressure: 0,08 bar A Residual oil content: < 0,02 mg/m3 D

Differential pressure: 0,10 bar A Residual oil content: < 0,01 mg/m3 D



Differential pressure: 0,12 bar B Residual oil content: < 0,2 mg/m3 D

Differential pressure: 0,14 bar B Residual oil content: < 0,02 mg/m3 D

Differential pressure: 0,18bar B Residual oil content: < 0,01 mg/m3 D





Filter type

Capacity* nominal m³/h

Connection G

Filter element Size








0035

35

1/4"

0035

0070

70

3/8"

0070

0120

120

1/2"

0120

0210

210

3/4"

0210

0320

320

1"

0320

0450

450

11/4"

0450

0600

600

1 1/2"

0600

0750

750

2"

0750

1100

1100

2"

1100


1450

1450

2 1/2"

1450
