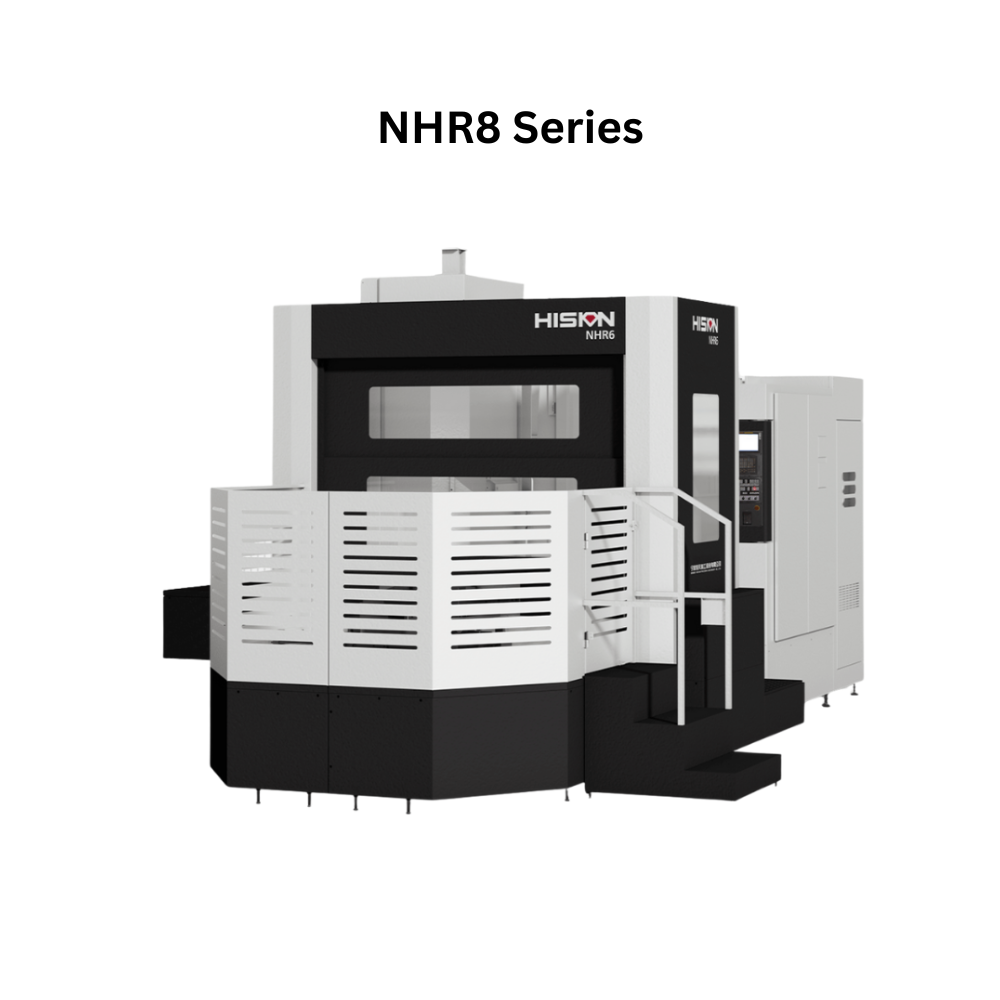

NHR8

The NHR8 Series Horizontal Machining Center is designed for heavy-duty and precision machining of large components. Built with an advanced T-shaped bed, gantry-style column, and front-mounted box layout, it provides exceptional rigidity and high-accuracy retention, suitable for both rough and fine machining of precision-grade components.

Ideal for automotive, aerospace, shipbuilding, rail transportation, valve, mining, and industrial machinery applications, the NHR8 can also be equipped with an optional W-axis (535 mm stroke, 130 mm diameter) for complex part machining.

Technical Specifications

Work Range:

• X / Y / Z Axis Travel: 1350 / 980 / 1000 mm

Rapid Traverse Speed:

• X / Y / Z: 32 / 24 / 30 m/min

Spindle Specifications:

• Spindle Speed: 8,000 rpm

• Spindle Power: 18.5 / 22 kW

• Spindle Torque: 703 / 837 Nm


Key Features

Powerful Main Drive

Two-stage gear transmission spindle box delivers high torque at low speeds with robust bearings for heavy cutting demands.

W-Axis Function

535 mm travel, 130 mm diameter, guided by precision linear rails and driven by a ball screw connected to a servo motor for versatile machining.

Y-Axis Guideway Structure

Hardened, ground guideways with large cross-section provide rigidity and symmetrical thermal deformation with seven contact surfaces for precise cutting performance.

Robotic Tool Magazine

In-house robotic tool magazine based on Japanese technology ensures stable, reliable, and automated tool changes.

Diverse Chip Removal

Multiple chip removal methods ensure efficient operation across various materials and machining processes, enhancing productivity.
